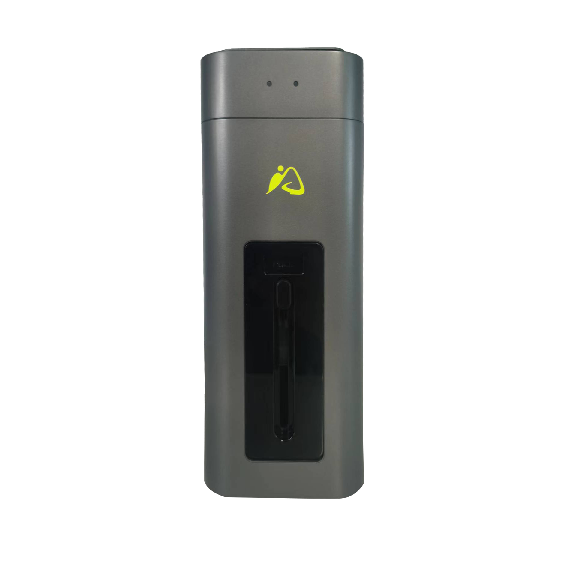

Automatic air aerosol collector
Liquefy the aerosols in the air based on the exclusive heat exchange technology to rapidly concentrate the biological samples (spore, mould, fungoid, bacteria, virus, nuclein etc.) in the air.
● Small and sophisticated
● High concentration
● Wide range
● Super safe
● Intelligent
● Considerate
| Parameter | |
| Sampling principle: | Heat exchange |
| Sampling medium: | Liquid |
| Sampling duration: | 1~2 h |
| Air flow speed: | ≥ 300L/min |
| Captured particle range: | > 0.2μm |
| Efficiency of capturing particles in different diameters: | 1μm particle ≥ 93.6%, 0.9μm particle ≥ 90.2%, 0.8 μm particle ≥ 85.6%, 0.6 μm particle ≥ 78.9%, 0.5 μm particle ≥ 72.5%, 0.4 μm particle ≥ 68.5%, 0.3 μm particle ≥ 63.9%, 0.2 μm particle ≥ 60.5% |
| Volume of collection space: | ≤ 36m³ |
| Volume of final sample liquid: | 3mL |
| Anti-pollution function: | automatic high temperature disinfection for 30min after the completion of each sampling |
| No extraction reagent: | The collected liquid contains lysis solution which may be applied for the direct use of qPCR test after the completion of sampling with no need of operation for the extraction of nucleic acid; |
| Automatic level: | Automatically close the sampling after the completion of each sampling, automatic alarm for failure of sampling |
| User interface: | Mobile phone APP interface, bluetooth connection |
| Weight: | 2.6Kg |
| Dimension (L*W*H): | 120mm*250mm*317mm |
| Consumable: | 5mL sampling tube ( contains 2mL collected liquid) |
| Work environment: | Humidity ≥ 30%, temperature 6-60℃ |
| Configuration | |
| Portable briefcase | ×1 |
| Xuan Ming First Generation automatic air aerosol collector host machine | ×1 |
| Product instruction manual | ×1 |
| Aerosol sampling tube device | ×10 |
| Item No. | Product name | Brand | Type/Specification | Warranty period/validity |
| Xuan Ming First Generation | Automatic air aerosol collector | Beijing Origingene- tech | Xuan Ming First Generation | 1 year |
| 01-99-0012 | Aerosol collecting device | Beijing Origingene- tech | 1 pcs/pack | 1 year |
