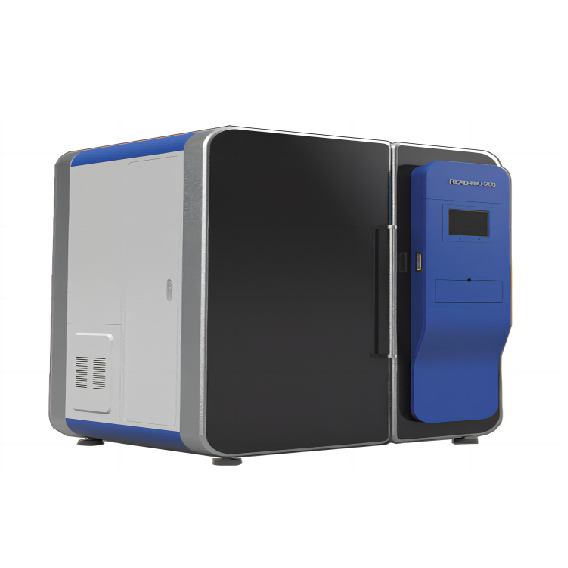

Automatic counting and cultivation system of micro-organisms
Automatic cultivation and surveillance and data dealing analysis system for micro-organisms is applied with the unique technology of image information collection and colony analysis for the regular, continuous, and dynamic surveillance of micro-organism for their cultivation and growth. Through the visual analysis on the image information, it effectively differentiates the impurities, automatically, accurately counts the total number of microbiological colony to improve the detectability and the efficiency of detection; with the perfect combination of conventional methods and innovative technologies, it makes the breakthrough to achieve the traceability of result and leaving track of process for the establishment of a completely new set of system for the cultivation and detection of micro-organisms to bring a completely refreshing experience of micro-organism detection system that is totally different.
● High automation
● Accurate result
● Traceable of process
● High price-quality ratio
| Parameter | |||||
| Type | |||||
| Read Bio mini | Read Bio Ⅰ-α | Read Bio Ⅰ-β | Read Bio Ⅱ | Read Bio Ⅲ | |
| Capacity : | 96 culture dishes | 100 culture dishes | 100 culture dishes | 200 culture dishes | 400 culture dishes |
Dimension of culture dish : | φ90mm | φ90mm | φ90mm | φ90mm | φ90mm |
Method of culture : | Inverted cultivation | Inverted cultivation | Upright cultivation | Inverted cultivation | Inverted cultivation |
| Temperature range of cultivation : | RT+5℃~50℃ | RT+5℃~50℃ | RT+5℃~50℃ | RT+5℃~50℃ | RT+5℃~50℃ |
Temperature control accuracy : | ±0.5℃ | ±0.5℃ | ±0.5℃ | ±0.5℃ | ±0.5℃ |
Camera resolution : | 14 million pixels | 14 million pixels | 14 million pixels | 14 million pixels | 14 million pixels |
Diameter of minimal detectable bacterial colony : | ≥100μm | ≥100μm | ≥100μm | ≥100μm | ≥100μm |
Quantity of camera : | 1 set | 1 set | 1 set | 1 set | 1 set |
| Image style : | Front shooting, color image | Front shooting, color image | Front shooting, color image | Front shooting, color image | Front shooting, color image |
Software function : (optional) | Real-time online monitoring, real-time counting of bacterial colony, simulation for 3D imaging | ||||
| Configuration | |
| Host machine (including computer, bracket of culture dish, electric motor, camera etc.) | ×1 |
| Control software for the instrument | ×1 |
| Product instruction manual | ×1 |
| Warranty card | ×1 |
| Product qualification | ×1 |
| Item No. | Product name | Brand | Type | Warranty period |
| Read Bio-mini*#* | Automatic counting system of digital microscope for the cultivation of micro-organisms | Sichuan Ruo Bin | Read Bio mini | 1 year |
| Read Bio-mini*#* | Sichuan Ruo Bin | Read Bio Ⅰ-α | 1 year | |
| Read Bio-mini*#* | Sichuan Ruo Bin | Read Bio Ⅰ-β | 1 year | |
| Read Bio-mini*#* | Sichuan Ruo Bin | Read Bio Ⅱ | 1 year | |
| Read Bio-mini*#* | Sichuan Ruo Bin | Read Bio Ⅲ | 1 year |
