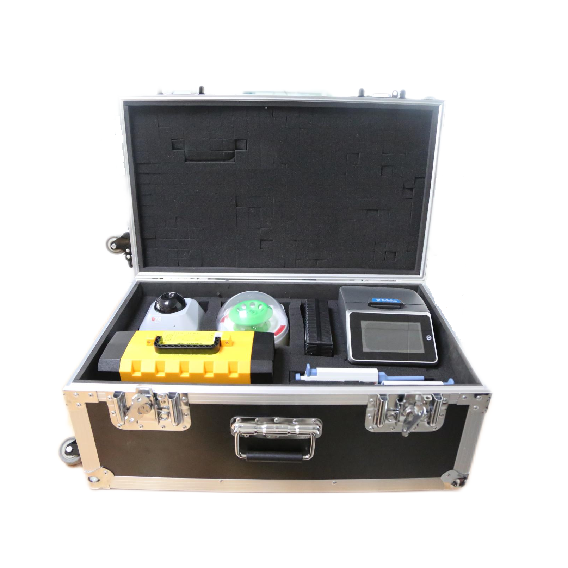

Portable nucleic acid detection box
Portable nucleic acid detection box is configured with the mixer, centrifuge, microfluidics PCR instrument, pipette and mobile power (optional), matching reagent, consumables for the completion of the nucleic acid test experiment for the whole set of pathogen. Instruments inside the portable nucleic acid detection box are small and light, the body of the box is draw bar coupling box which is convenient for movement; the completely closed design of experimental consumables and operational flow guarantee the experiment in a non-professional nucleic acid laboratory and avoid the nucleic acid contamination.
● Portable,safe and fast detection
● Easy operation
● High price-quality ratio
Parameter | |
| Detection time : | Within 1 hour from sample to the result |
Temperature accuracy of microfluidic PCR instrument : | ±0.01℃ |
Temperature rise and fall rate of microfluidic PCR instrument : | ≥7.5 |
Amplification sensitivity of microfluidic PCR instrument : | 1copy |

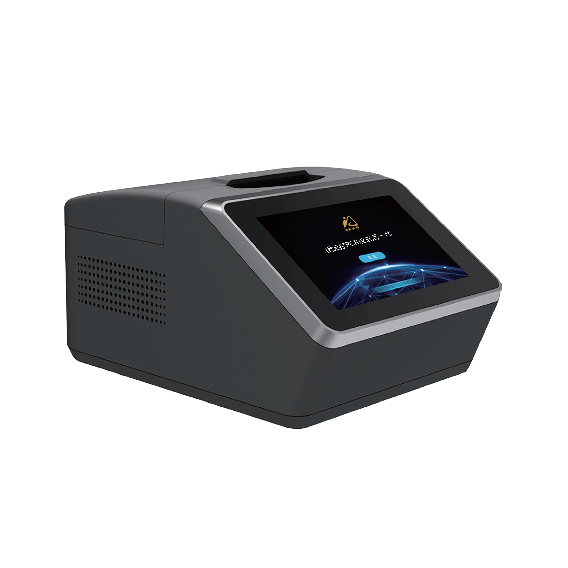

Microfluidic PCR instrument display : | Color touch scree |
Weight of microfluidic PCR machin : | 1.36kg |
Rotation speed of fixed speed mixer : | 3000rpm |
Palm centrifuge capacit : | 2mlx8、1.5mlx8、0.5ml×8、0.2mlx8、0.2ml×16 |
Handheld centrifuge speed : | 6000rpm |
Mobile power battery capacity : | 288WH (Two tests can be completed |
Pipette volume : | 5Microliter、20Microliter |
| Configuration | |||
| Portable trolley case | ×1 | Handheld centrifuge | ×1 |
| Microfluidic PCR Amplifier | ×1 | Fixed speed mixer | ×1 |
| mobile power (optional) | ×1 | Pipette | ×2 |
