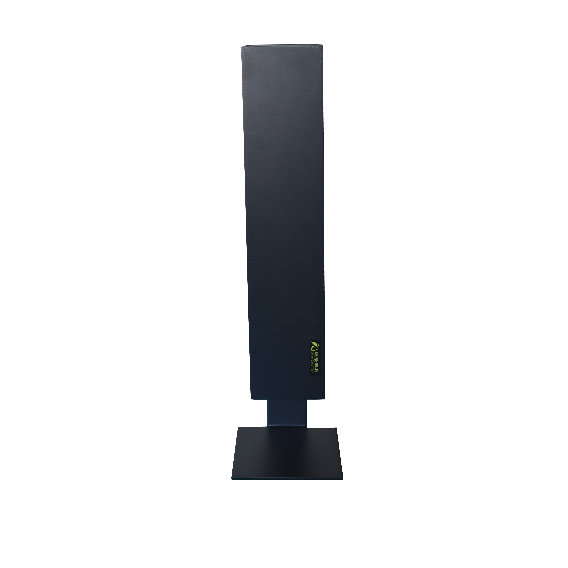

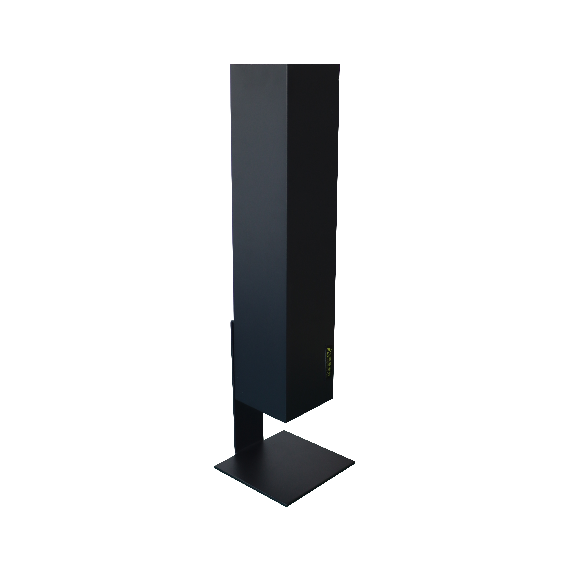

Ultraviolate sterilizer
Such air in the environment based on the principle of ultraviolate sterilization to enable the sterilization of air through a disinfecting chamber filled with ultraviolate ray for the output of disinfected air.
● Reflection for the indoor design, double the UV-C energy to achieve sudden saturation for disinfection
● Double layer metal protection shield, zero leakage for the UV radiation
● Meet the safety standard of European Union with zero discharge of ozone
● Coordinated for the use inside the air conditioning room
| Parameter | |
| Dimension： | 100*100*475mm (without bracket) or 152*152*584mm (with bracket) |
| Weight： | 3.5kg |
| Disinfection weight： | ≤120m³ |
| Cycled wind volume： | ≥110 m³/h |
| Working noise： | ≤40dB |
| Installation method: | vertical, horizontal, suspension type, wall mounting type |
| Application environment: | Human-machine co-existence; dynamic environment and static environment |
| Ultraviolate light source: | TC 2G11 18W (no ozone ultraviolate light source) |
Ultraviolate light source wavelength: | 253nm (provide test report) |
| Ultraviolate irradiance: | 748.6μw/cm2 (provide test report) |
| Ultraviolate ray leakage： | 0μw/cm2 (provide test report) |
Ozone concentration in the air during the disinfection: | ＜0.05ppm (provide test report) |
Average life of ultraviolate light tube: | ≥12 months (continuous use) |
| Configuration | |
| Portable briefcase | ×1 |
| Qing Geng Bird mini ultraviolate ray disinfection host machine | ×1 |
| Product instruction manual | ×1 |
| Installation base | ×1 |
| Installation bracket | ×1 |
| Tool box | ×1 |
